32SM5J-B

Full HD Standard Signage





Key Feature



Brightness(Typ. ) : 400 cd/m?

Bezel : 13 mm (T/R/L), 18 mm (B)

Depth : 55.5 mm

Interface : HDMI(3) /USB 2.0/ RS232C/ RJ45/ IR / Audio Out

Built-in Speaker : 10W + 10W





Tech Spec





Panel






Screen Size

32"

Panel Technology

IPS

Native Resolution

1,920 X 1,080 (FHD)

Brightness (Typ. )

400 nit

Contrast Ratio

1,100 : 1

Dynamic CR

1,000, 000 : 1

Viewing Angle (H x V)

178 × 178

Response Time

10 ms (G to G)

Surface Treatment (Haze)

1%

Operation Hours (Hours / Days)

24/7

Orientation

Portrait / Landscape










Mechanical Specification






Bezel Color

Black

Bezel Width

13 mm (T/R/L), 18 mm (B)

Weight (Head)

5.7 kg

Weight (Head+Stand)

6.5 kg

Monitor Dimensions (W × H × D)

729.4 mm × 428.9 mm × 55.5 mm

Monitor Dimensions with Stand (W × H × D)

729.4 mm × 481 mm × 154.2 mm

VESA? Standard Mount Interface

200 × 200 mm










Feature






Key Feature

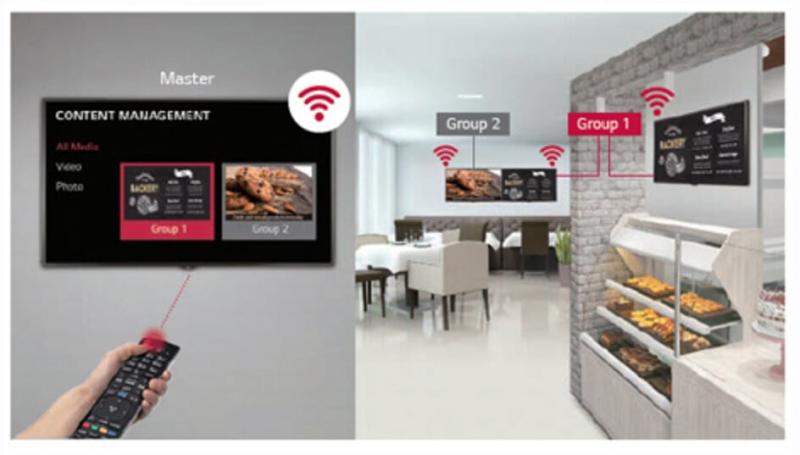

Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Sever Setting, webRTC, Pro:Idiom










Connectivity






Input

HDMI (3, HDCP 2.2), USB 2.0 ( Type A)

Output

Audio Out (Off / Fixed / Variable)

External Control

RS-232C In/Out (Phone-jack Type), RJ45 In (LAN), IR In (Phone-jack Type)










Environment Conditions






Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%










Power






Power Supply

AC 100-240 V~, 50/60 Hz

Power Type

Built-In Power










Power Consumption






Typ. /Max.

55 W / 75 W

BTU (British Thermal Unit)

187.67 BTU/Hr (Typ. ), 255.911 BTU/Hr (Max. )










Certification






Safety

CB / NRTL

EMC

FCC Class ?A? / CE

ErP

No










Software Compatibility






SuperSign CMS

Yes

SuperSign Control / Control+

Yes

SuperSign WB

Yes

SuperSign Media Editor

Yes

LG ConnectedCare

Yes

Promota

Yes (Not available for Europe/CIS Region)










Sound






Speaker

Yes (10 W × 2 EA)










Accessory






Basic

Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS-232C Gender

Optional

Stand (ST-322T), Wall Bracket (LSW230B), VESA Adapter (AM-B220S)
